In the era of Industry 4.0, how do Universal Robots collaborative robots achieve more flexible and stable applications? The answer often lies in high-quality aluminum extrusions. These extrusions are more than just simple support structures—they are core elements in the collaborative robot ecosystem, offering endless customization possibilities.
As integral components of the UR robot ecosystem, they enable businesses to build custom frames, extend axes, or workstations, thereby boosting automation efficiency. At Zheng ji, a company specializing in aluminum profiles, we are committed to helping you better understand the role of aluminum extrusions in UR systems.
Key takeaway: High-quality aluminum extrusions turn UR robots from standalone tools into flexible, scalable automation platforms.
What Are Universal Robots Aluminum Extrusions?
Universal Robots aluminum extrusions are aluminum profiles specifically designed for UR collaborative robots, typically featuring a T-slot system. This design allows users to easily assemble modular frames, brackets, or seventh axes, expanding the robot’s range of motion and functionality.
The basic concept stems from industrial aluminum alloy extrusion processes, with common sizes including 40x40mm for lightweight applications and 80x80mm for heavy-duty scenarios. They not only provide structural support but also ensure the robot arm’s stability during high-speed operations, preventing deformation or vibrations that could affect precision.
In the official UR ecosystem, these extrusions are often combined with accessories like connectors and sliders to form complete automation platforms.
Universal Robots Aluminum Profile Characteristics and Advantages
These aluminum profiles are primarily made from high-strength alloys(such as the 6061 or 6063 series), offering lightweight, corrosion-resistant, and highly rigid properties.
According to industry standards, their rigidity can be up to three times that of standard aluminum, effectively absorbing vibrations and ensuring UR robots’ accuracy in precision tasks.
| Advantage Category | Detailed Description | Example |
|---|---|---|
| Modular Design | T-slot system allows for quick assembly and structural modifications, no welding required | Custom workbenches |
| Cost-Effectiveness | 30% lighter than steel, with low procurement and maintenance costs | SME budgets |
| Durability | Corrosion-resistant & long service life | Humid environments |
| Flexible Scalability | 100% recyclable, ensuring sustainability throughout the product lifecycle | Platform color tone coordination |
Our standard aluminum profiles are developed based on these characteristics, ensuring seamless compatibility with UR robots and providing one-stop service from design to delivery.
Technical Considerations & Design Guidelines
When integrating aluminum extrusions into UR-based automation systems, several engineering considerations ensure structural performance, safety, and long-term reliability:
- Load Capacity Selection：Choose profile sizes (e.g., 40×40, 45×90, 80×80) based on static and dynamic load requirements. Larger cross-sections and thicker walls offer improved stiffness for high-speed or high-payload UR applications.
- Joint Stability and Fastening Methods：Use reinforced corner brackets, gusset plates, or internal fasteners for high-vibration environments. Proper fastening prevents micro-movement that may affect UR repeatability over time.
- Vibration Control and Base Reinforcement：Robot bases should incorporate cross-bracing, floor anchoring, and reinforced plate structures. Reducing resonance is critical for maintaining tool-center-point accuracy during fast cobot movements.
- Safety Integration：Extrusions support modular safety components such as polycarbonate guarding, locking doors, and sensor mounts. Ensure compliance with ISO 10218 and ISO/TS 15066 when designing collaborative environments.
- Cable Management and Accessory Routing：Internal grooves allow for clean routing of signal cables, pneumatic lines, and power conduits. Organized cable paths reduce wear, improve serviceability, and maintain a professional installation standard.
Compatibility and Application Scenarios
Aluminum extrusions in robotic applications support a wide range of automation layouts, enabling flexible, safe, and scalable collaborative robot deployments. These profiles accommodate several key structural configurations:

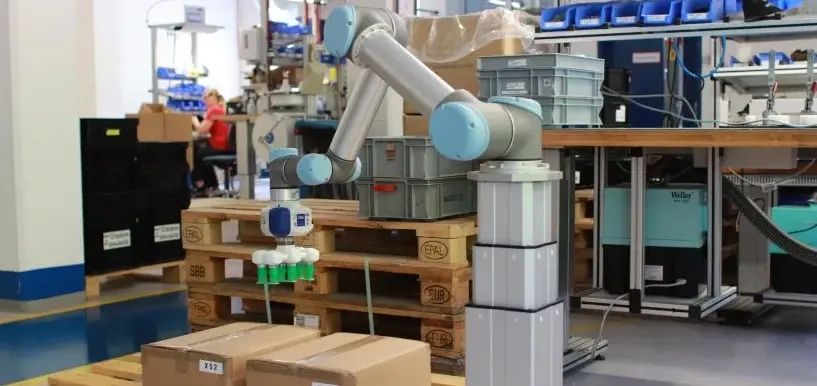

1. Collaborative Workstations
Extrusion-based workbenches allow UR robots to operate alongside humans in ergonomic setups. Height-adjustable columns, integrated cable channels, and modular mounts support rapid adaptation to various assembly or testing tasks.

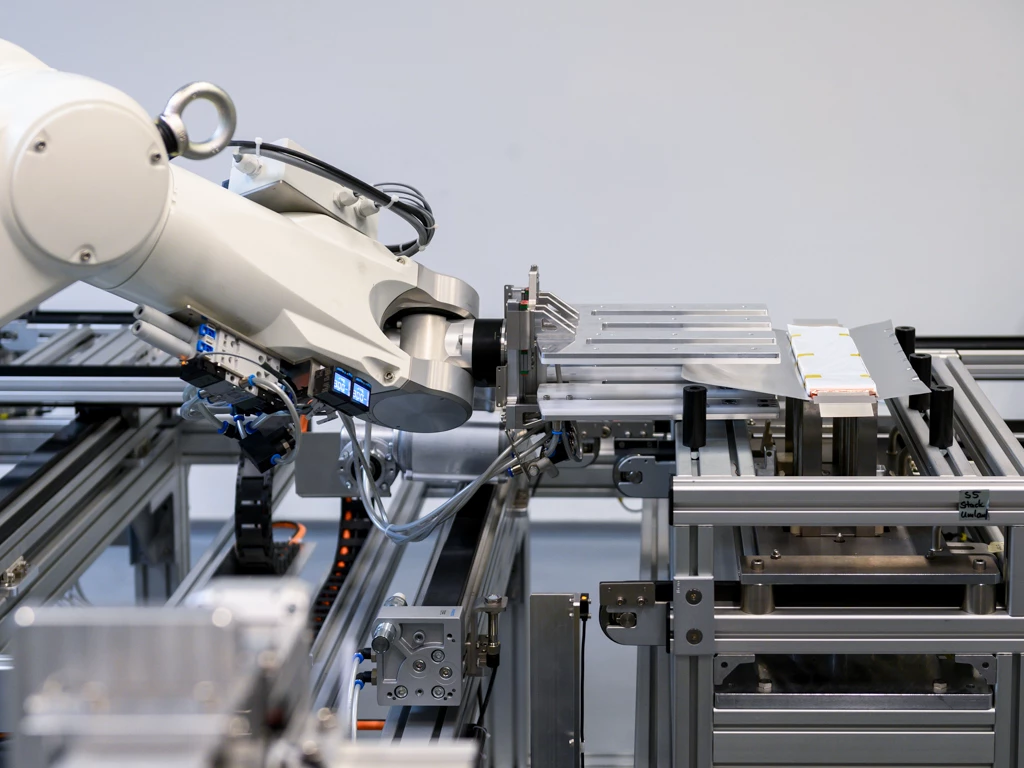

2. Robot Islands and Automation Cells
Aluminum profiles form the core framework of compact robot cells, featuring polycarbonate guarding, safety doors, and under-bench cabinets for control systems. These cells help maintain operator safety while providing a clean integration environment for tasks such as inspection, packaging, and precision handling.

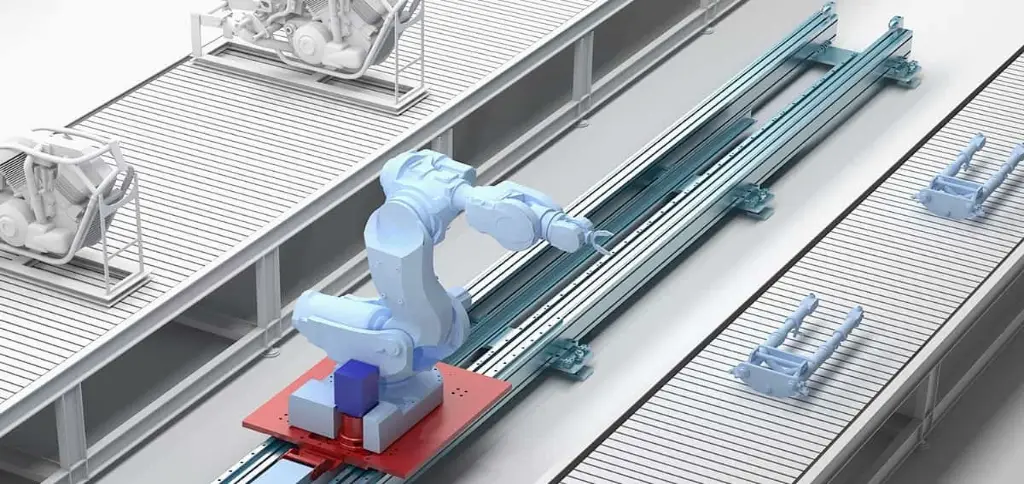

3. Linear Extensions and Seventh Axes
Heavy-duty extrusion structures are commonly used to support linear rails and seventh-axis modules. These extensions increase the cobot’s reachable workspace, enabling multi-station servicing and improving throughput without adding additional robots.

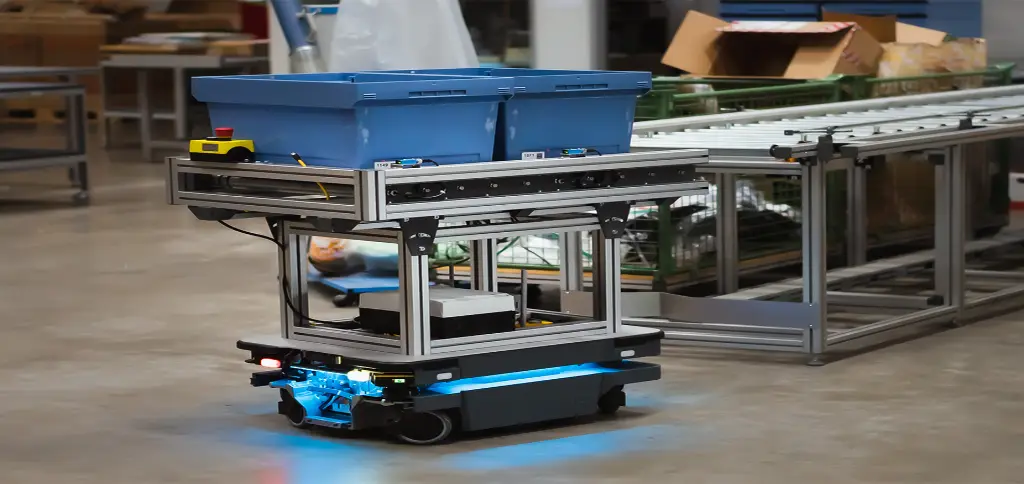

4. Portable Cobot Platforms
Lightweight yet rigid extrusion frames enable mobile UR stations that can be rolled between work areas. This approach maximizes robot utilization and is ideal for small or mid-sized manufacturers with dynamic production requirements.
5. Enclosed Processing Cabins
For applications involving dust, noise, fumes, or flying debris, aluminum extrusion cabins with clear or opaque panels create safe, isolated environments. These enclosures are widely used in machining, electronics, plastics, and light manufacturing to protect operators and maintain stable processing conditions.
6. Scalable System Expansion
The modular nature of T-slot aluminum profiles allows users to upgrade existing manual or semi-automated stations into fully integrated UR workcells. Components such as sensors, conveyors, feeders, or fixtures can be added directly into the extrusion structure without redesigning the entire system.
Conclusion
In summary, Universal Robots aluminum extrusions are essential components for elevating collaborative robot performance.
As global manufacturing shifts toward flexible automation, extrusion-based UR systems will continue to grow in demand. Companies adopting these solutions benefit from shorter deployment cycles, safer work environments, and more adaptive production lines. For industries seeking reliable yet cost-efficient automation infrastructure, aluminum extrusions remain one of the most practical and future-ready structural technologies.
FAQ
1. What is the primary role of Universal Robots aluminum extrusions in automated production lines?
These extrusions are used to build support frames, extension axes, or workstations for UR collaborative robots, providing modular structural support that enhances system stability and functional range, optimizing the overall automation process.
2. What key points should be considered when using these aluminum extrusions in industrial installations?
Select specifications that match the load requirements, use T-slot connectors for secure fastening, ensure the frame is level to minimize vibrations affecting UR precision, and conduct load testing to meet safety standards.
3. What advantages does the T-slot system provide in UR integrations?
The T-slot system supports tool-free quick assembly and accessory compatibility, enhancing UR system flexibility and scalability, making it ideal for upgrades and adjustments in dynamic industrial environments.
4. Do aluminum extrusion frames impact the precision and lifespan of UR robots?
Properly designed and installed aluminum extrusion frames can effectively absorb vibrations and maintain long-term rigidity, which in turn helps protect UR robots’ repeatability in positioning and joint lifespan.
