Why Surface Smoothness Matters More Than You Think
In CNC machining, achieving precise dimensions is only part of the equation. Equally important—yet often underestimated—is Surface Smoothness, also referred to as Surface Finish or Surface Roughness.
Surface Smoothness directly influences how a part performs, how long it lasts, and how it is perceived by end users. Whether in aerospace, automotive, electronics, or industrial equipment, improper surface finish can lead to premature wear, corrosion, sealing failure, or even structural breakdown.
For manufacturers and engineers, understanding and controlling Surface Smoothness is essential for delivering high-quality, high-performance components.
What Is Surface Smoothness in CNC Machining?
Surface Smoothness describes the microscopic texture of a machined surface, including peaks, valleys, and irregularities created during the cutting process.
It is commonly measured using standardized roughness parameters:
- Ra (Arithmetic Average Roughness):The most widely used indicator
- Rz (Average Maximum Height):Measures peak-to-valley differences
- Rt (Total Height of Profile):Maximum surface deviation
Lower Ra values indicate smoother surfaces, while higher values represent rougher textures.
Here’s a clear, industry-standard overview of surface roughness symbols and abbreviations, commonly used in engineering drawings and machining (ISO/ASME standards):
Surface Roughness Symbols & Abbreviations Table
| Symbol / Abbreviation | Meaning / Description | Unit |
| Ra | Average of absolute deviations from the mean line; most commonly used parameter | μm / μin |
| Rz | Average of peak-to-valley heights over sampling lengths | μm / μin |
| Rt | Vertical distance between highest peak and lowest valley in entire evaluation length | μm / μin |
| Rq (RMS) | RMS average of profile deviations; more sensitive to peaks and valleys | μm / μin |
| Rp | Height of the highest peak above the mean line | μm / μin |
| Rv | Depth of the deepest valley below the mean line | μm / μin |
| Rsk | Indicates asymmetry of the surface profile (peaks vs valleys) | — |
| Rku | Measures sharpness/flatness of profile distribution | — |
| λc (Cut-off) | Filter value separating roughness from waviness | mm |
| Sm | Average spacing between peaks | mm |
| Sa | 3D equivalent of Ra (areal roughness) | μm |
| Sz | 3D equivalent of Rt | μm |
Surface Smoothness Symbols (Engineering Drawings)
Symbol | Meaning |
⌒ | Basic surface texture symbol (no machining specified) |
⌒— | Material removal required (machining needed) |
⌒○ | Material removal not permitted (as-cast/forged surface) |
⌒Ra 1.6 | Specifies required roughness value (e.g., Ra = 1.6 μm) |
Common Roughness Grades (Reference)
Roughness (Ra μm) | Typical Process |
25 – 12.5 | Sand casting |
6.3 – 3.2 | Milling |
1.6 – 0.8 | Fine machining / turning |
0.4 – 0.2 | Grinding |
0.1 – 0.05 | Polishing / superfinishing |
Key Notes
- Ra is the most widely specified parameter in global engineering drawings.
- Rz is often preferred in Europe and for functional surfaces.
- 3D parameters (Sa, Sz) are increasingly used in advanced surface analysis.
- Always confirm whether the standard is ISO (Europe/Asia)or ASME (USA).
Surface Roughness vs Surface Smoothness: What’s the Difference?
Although often used interchangeably, these terms are not identical:
- Surface Roughness:Quantitative measurement of micro-irregularities;
- Surface Smoothness:A broader concept that includes roughness, waviness, and overall texture.
Understanding this distinction helps in specifying requirements more accurately in engineering drawings and procurement.
Why Surface Smoothness Is Critical in CNC Machining
1. Reduces Friction and Wear
Surface irregularities increase contact resistance between moving parts. In mechanical systems such as shafts, gears, and bearings, excessive roughness leads to:
- Increased friction
- Heat generation
- Accelerated wear
A smoother surface minimizes resistance, improving efficiency and extending component lifespan.
2. Enhances Fatigue Strength and Structural Integrity
Microscopic surface defects act as stress concentration points. Under cyclic loading, these points can initiate cracks that propagate over time.Improved surface smoothness:
- Reduces crack initiation risks
- Increases fatigue life
- Enhances reliability in high-stress environments
This is especially crucial in aerospace and high-performance automotive applications.
3. Improves Corrosion Resistance
Rough surfaces trap moisture, chemicals, and contaminants, creating ideal conditions for corrosion.For Aluminum components, smoother surfaces:
- Reduce exposure to corrosive agents
- Improve anodizing and coating adhesion
- Extend service life in harsh environments
A smoother surface can enhance coating adhesion (such as Anodizing, Electroplating), reduce gaps where moisture or chemicals accumulate, and thus enhance corrosion resistance.
4. Affects Sealing and Assembly Performance
In applications requiring tight sealing (e.g., hydraulic systems), surface smoothness directly determines sealing effectiveness.Poor surface smoothness may cause:
- Leakage
- Poor fit
- Reduced assembly precision
Optimized smoothness ensures proper mating between components and improves overall system performance.
5. Enhances Aesthetic Quality and Market Value
In consumer-facing industries, appearance is critical. Products such as aluminum housings, handles, and enclosures require consistent and visually appealing finishes.A high-quality surface:
- Reflects manufacturing precision
- Improves brand perception
- Adds commercial value
Factors That Affect Surface Smoothness in CNC Machining
Several controllable variables affect the final surface quality:
Machining Parameters
- Feed rate: Lower feed = smoother finish (but longer cycle time).
- Cutting speed: Higher speeds often improve finish with carbide tools.
- Depth of cut: Lighter finishing passes yield better results.
- Climb milling (vs. conventional) generally produces superior finishes.
Tooling Choices
- Sharp tools with optimal nose radius or wiper inserts dramatically reduce roughness.
- Tool material/coating and rigidity matter—vibration from dull tools ruins surfaces.
Material Properties
- Softer materials (Aluminum) machine smoother than hard ones (Titanium), but gummy materials can cause built-up edge issues.
Machine Tool Stability
Machine rigidity plays a critical role. Vibration (chatter) leads to:
- Irregular surface patterns
- Reduced dimensional accuracy
- Poor repeatability

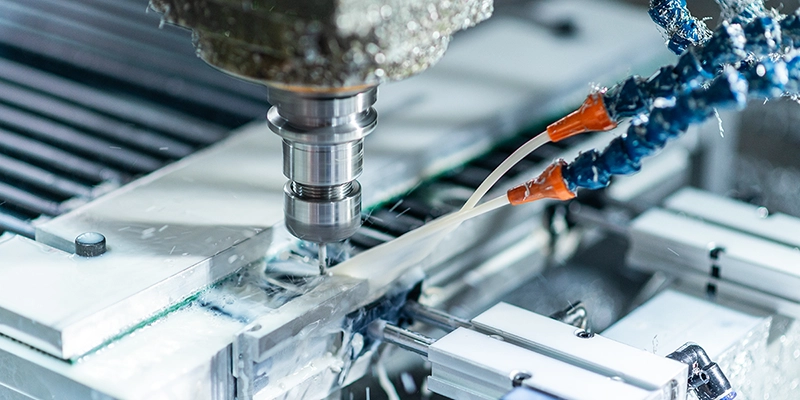

Coolant and Lubrication
Proper cooling:
- Reduces thermal deformation
- Prevents chip adhesion
- Improves overall finish quality
Controlling these variables is key to achieving consistent and high-quality smoothness.
Surface Smoothness Standards and Typical Values
| Surface Smoothness Level | Ra Value (µm) | Application Example |
| Rough Machining | 3.2 – 12.5 | Structural parts |
| Semi-Finishing | 1.6 – 3.2 | General engineering |
| Fine Machining | 0.8 – 1.6 | Precision components |
| High Precision | 0.2 – 0.8 | Aerospace, medical |
| Ultra-Fine Finish | < 0.2 | Optical, high-end parts |
Choosing the correct level avoids unnecessary cost while meeting functional requirements.
How to Improve Surface Smoothness in CNC Machining
Optimize Machining Strategy
- Use appropriate feeds and speeds
- Apply finishing passes
- Reduce depth of cut for final operations
Use High-Quality Cutting Tools
- Maintain sharp tools
- Select coatings to reduce friction
- Replace worn tools regularly
Apply Post-Processing Techniques
Common surface treatments include:
- Anodizing– enhances corrosion resistance and appearance
- Sandblasting– creates uniform matte texture
- Polishing– achieves mirror finishes
- Powder coating– adds durability and color
Ensure Machine Maintenance
- Minimize vibration
- Maintain spindle accuracy
- Regular calibration
Industry Applications of Surface Smoothness
Surface smoothness requirements vary across industries:
| Industry | Core Surface Smoothness Requirements | Detailed Explanation |
|---|---|---|
| Aerospace | Ultra-low roughness to enhance fatigue resistance | Critical aerospace components require ultra-smooth finishes (typically ≤ Ra 0.8 μm) to minimize stress concentrations, prevent premature fatigue failure, and ensure reliable performance under extreme operating conditions. |
| Automotive | Balanced performance and cost requirements | Balances high-precision finishes for functional parts (e.g., engine components, bearings, gears) to reduce friction and wear, with cost-effective surface quality for non-critical structural elements to optimize production efficiency. |
| Electronics | Smooth surface with aesthetic appeal | Demands smooth, blemish-free surfaces for consumer electronics and communication devices, ensuring optimal heat dissipation, electrical performance, and premium visual quality for end products. |
| Construction | Functionally reliable and corrosion-resistant surfaces | Prioritizes durable, corrosion-resistant finishes with controlled roughness for enhanced coating adhesion, ensuring long-term outdoor performance, weatherability, and structural integrity for architectural components. |
Conclusion
Surface smoothness is a critical factor that goes far beyond appearance. It directly impacts mechanical performance, durability, corrosion resistance, and assembly quality.
In CNC machining, achieving the right Surface Smoothness requires a combination of:
- Optimized machining parameters
- Advanced tooling
- Proper material selection
- Effective post-processing
For manufacturers aiming to deliver high-quality Aluminum components, surface finish control is not optional—it is a core competitive advantage.
Contact Us for Cooperation
If your project requires high-precision CNC machining with strict Surface Smoothness requirements, our engineering team is ready to support you.
we can provide tailored solutions based on your specifications.Whether you need:
- Custom Aluminum parts
- Complex machining solutions
- High-quality surface treatments
For project inquiries, technical consultation, or quotations, please visit:
Zheng Ji Aluminum Official Website
Our team will respond quickly with professional support and manufacturing recommendations.
FAQ: Surface Smoothness in CNC Machining
What is a good Ra value for most CNC parts?
3.2 μm Ra is standard for general-purpose parts; 1.6 μm or better for precision functional surfaces.
Does smoother always mean better?
Not always—some applications (e.g., certain seals or adhesive bonding) benefit from controlled roughness.
How do you measure surface smoothness?
Using a profilometer (contact or optical) to calculate Ra/Rz values.
